Custom Layouts

Instructions

Use the Layout Library to quickly create a custom workspace layout. To create custom layouts:.

  1. In the bottom left corner of your TWS screen, click the + icon at the end of the tabset.

  2. Enter a name for this custom layout and click Create.

    The add a custom layout option in TWS.

  3. After clicking Create, a blank screen will populate. Select the New Window button to start adding and sizing your panels.

    To size panels, click and drag the corners of the panel.

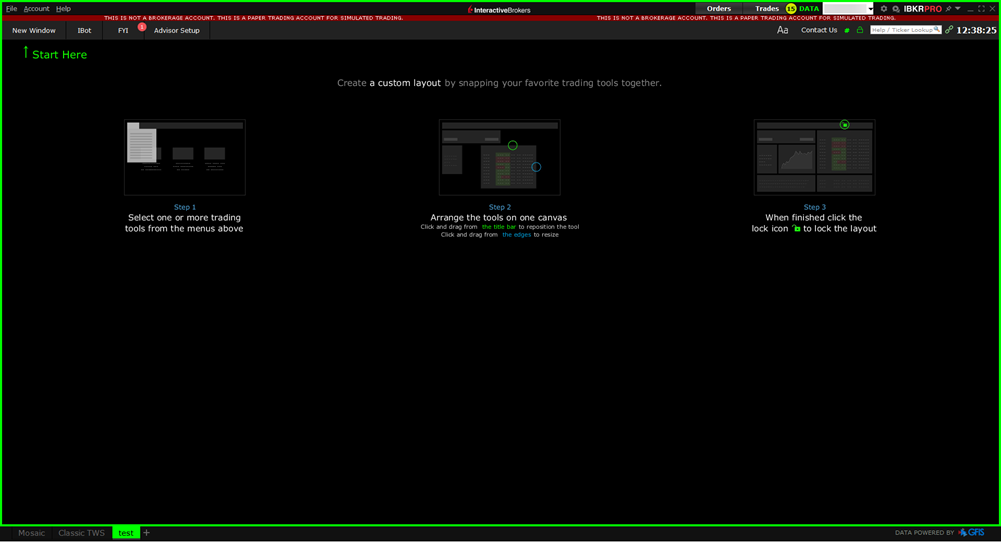

    The custom layouts new window option in TWS.

  4. Once you have added the panels you would like to view, click the green padlock icon in the top right corner to lock the layout in place.

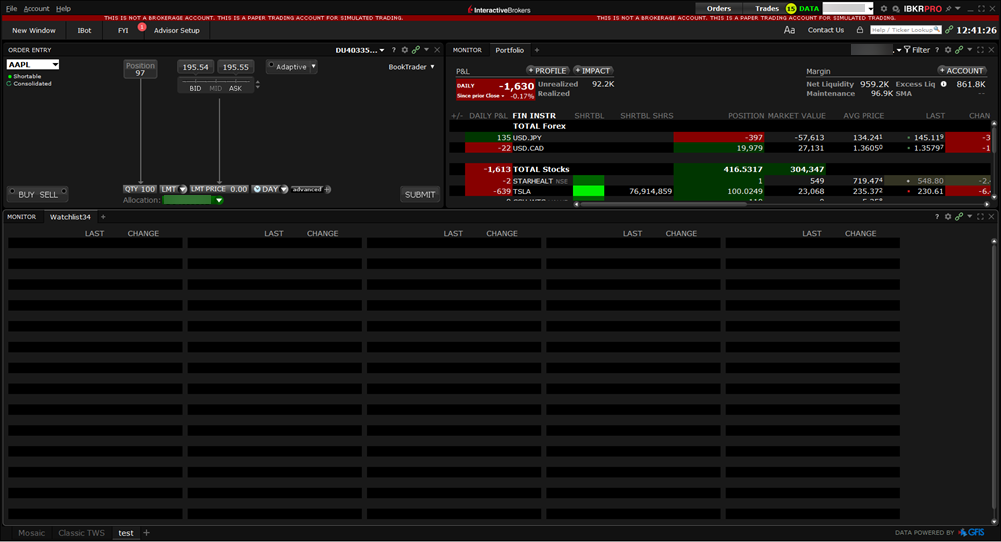

    The custom layouts padlock icon in TWS.

  5. The borders of the screen will switch from green to black, indicating the layout has been finished and saved.

    The custom layouts once finished & saved in TWS.

Note: You may add additional panels or resize the panels at any time by clicking the pan lock icon to unlock the panel.
